🌱Craterpot Hydroponics In Action 🛠

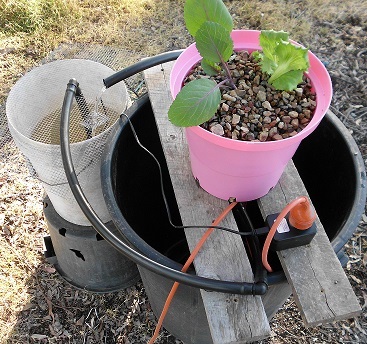

Craterpot Plant Pot Hydroponic System - An operable Example

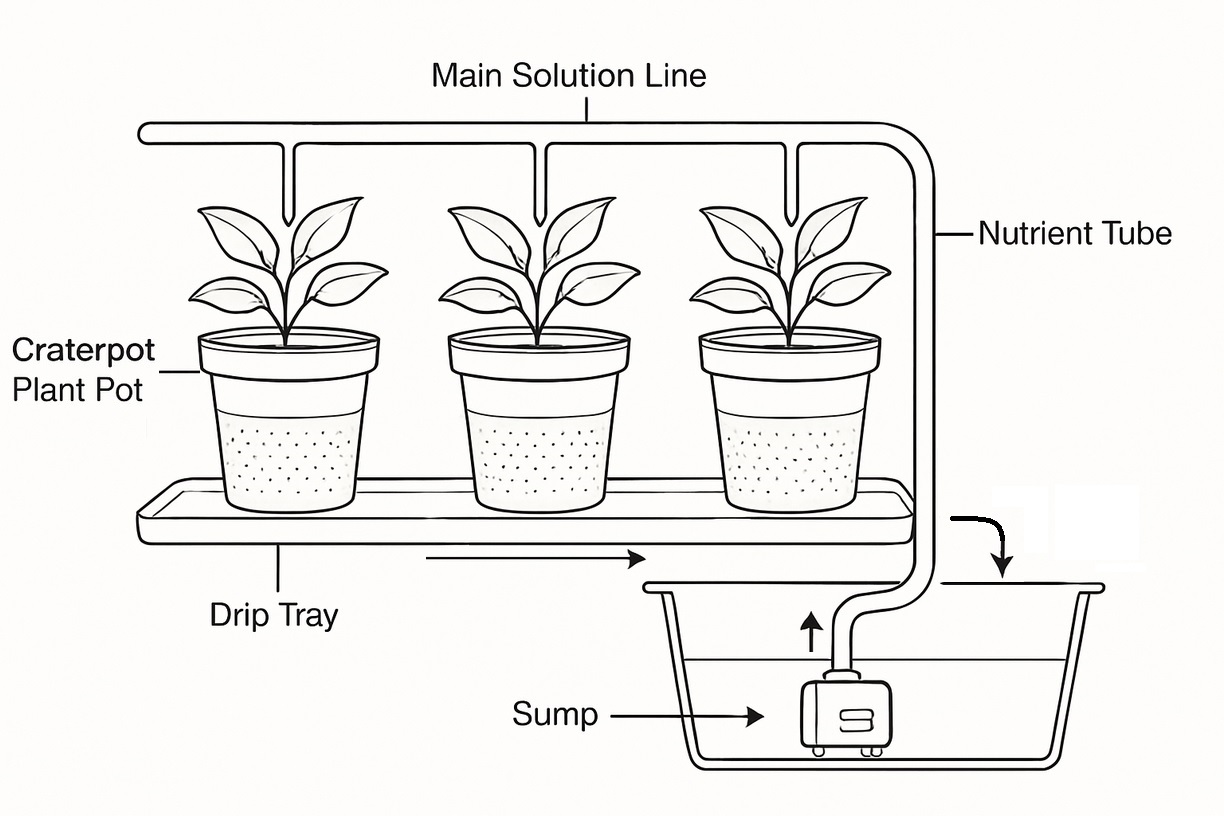

System Components:

• Individual Craterpot Plant Pot:
  • Craterpot Plant Pot - composed of two integrated components: an outer pot and a non-draining inner pot (the craterpot)
  • Filled with gravel for plant support
  • Drainage apertures in the outer pot, none in the craterpot (non-draining)
  • Plant grows in the gravel medium
• Distribution System:
  • Main solution line running above the pots
  • Individual tubes from main line to each craterpot
  • Solution flows into craterpot, fills, and overflows
  • Overflow exits through drainage apertures in the outer pot to drip tray
• Collection and Circulation:
  • Drip tray collects overflow
  • Solution returns to storage container/sump
  • Splashing oxygenates the solution
  • Small pump circulates solution back to main line

Key System Advantages:

• Each pot has independent reservoir (craterpot)
• System continues functioning if pump stops temporarily
• Individual pots can be removed and replaced
• Plants remain viable for market transport

Technical Explanation: The Craterpot Hydroponic System

The Craterpot system is an innovative hydroponic platform engineered for scalable, low-energy nutrient delivery. Central to the design is an integrated internal vessel - the "Craterpot" - which functions as a subsurface nutrient reservoir embedded within a matrix of inert or semi-inert growing media (e.g., expanded clay, perlite, or coarse gravel). This structure enables a hybrid approach to hydroponics, combining passive nutrient uptake with active circulation in a highly localized zone. The reservoir remains isolated from ambient evaporative forces due to full encapsulation within the media bed, thereby stabilizing moisture and nutrient levels and reducing evaporative losses. Capillarity and root osmosis draw nutrients directly from the Craterpot, maintaining plant hydration and nutrition without necessitating constant flow or high-pressure delivery. Because the reservoir volume is minimal and isolated, the system requires only micro-scale recirculation pumps to replenish nutrient solution intermittently. These pumps operate under low head conditions, drastically reducing energy consumption even across high-density installations. In effect, the Craterpot acts as a self-regulating node within a decentralized hydroponic array, minimizing systemic dependency on centralized infrastructure. This passive-active hybrid design confers a high degree of fault tolerance, as individual Craterpots continue to supply nutrients during brief pump outages. Moreover, the Optimised Root Interface (ORI) created around each Craterpot enhances root-zone oxygenation and separation, preventing root clumping and promoting radial root proliferation.

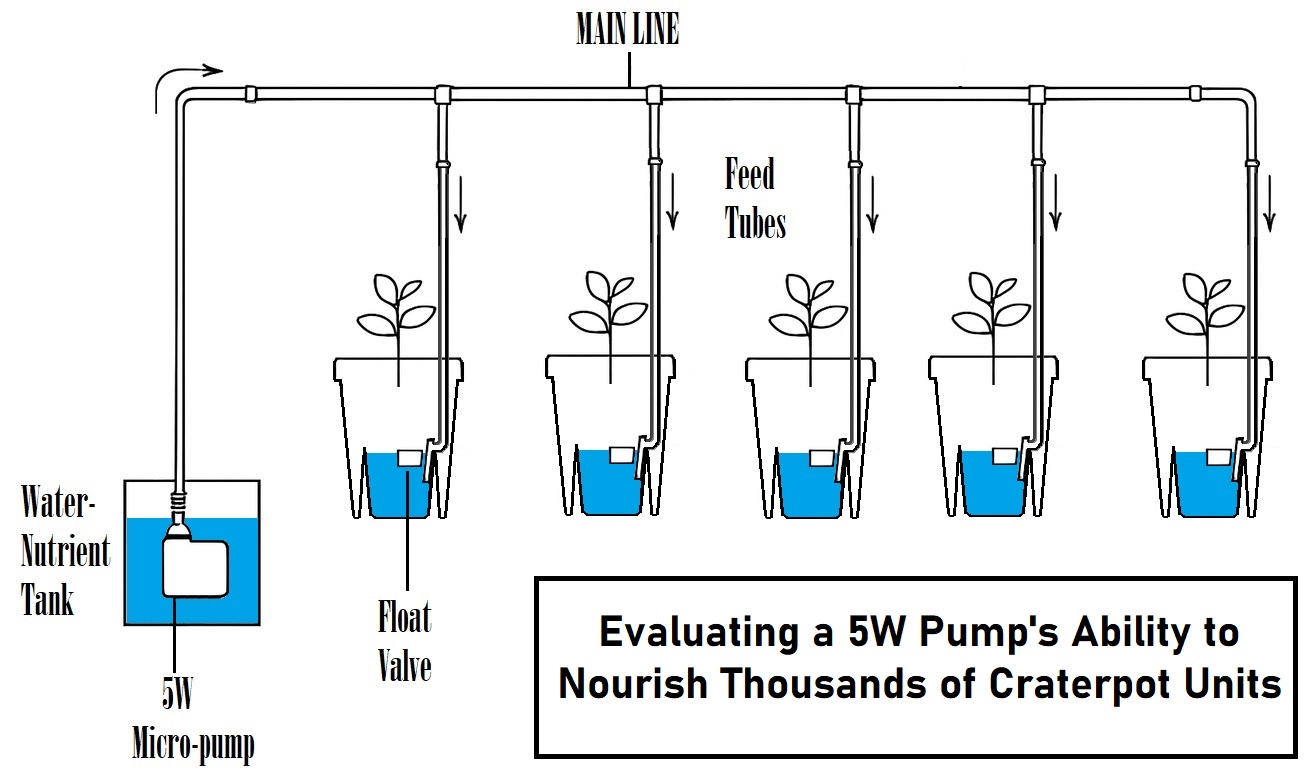

How It Works: A Closed-Loop Hydroponic System

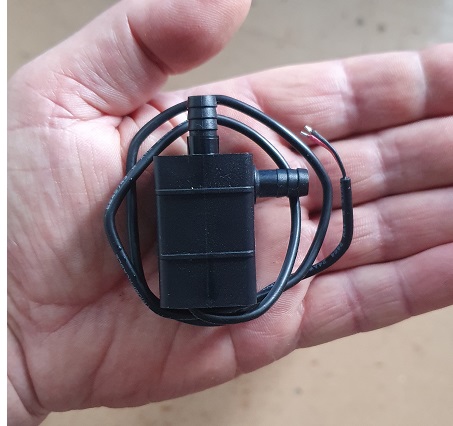

Each Craterpot Plant Pot functions as a self-contained hydroponic unit. While there are many ways to configure a system using Craterpots, the example above shows a main nutrient line delivering a carefully balanced water-and-nutrient solution directly into the inner pot (the "craterpot") of each unit. As the solution fills the craterpot, it gently overflows into the surrounding outer pot. From there, it drains through typical drainage into a collection tray, and then returns to a central sump tank. When the nutrient solution splashes back into the sump, it becomes naturally oxygenated - an essential process for healthy, vigorous root growth. A small, ultra-low-wattage pump is all that's needed to circulate this oxygen-rich solution back into the system, completing the efficient closed-loop cycle. For added sustainability, a compact solar panel can be used to power the pump - making the system energy-efficient and easy to maintain.

Resilience Without Automation

Thanks to the Craterpot's ability to hold a small internal reservoir of nutrient solution, plants continue to thrive even if the active flow is paused. This means no automation is necessary - watering by hand once a day, or even every second day (depending on the plant's growth stage), is usually enough to maintain healthy development. This design is especially well-suited for areas lacking reliable electricity or for growers seeking low-tech, low-maintenance cultivation.

Benefits for Developing Countries:

The Craterpot system holds immense potential for addressing food insecurity and boosting local economies in developing regions. Its primary advantage lies in its water efficiency; hydroponics uses significantly less water than traditional soil-based agriculture, making it ideal for regions with scarce water resources. Furthermore, the ability to grow crops in non-arable land (e.g., urban areas, rocky terrain) expands agricultural possibilities. The Craterpot's internal reservoir provides a buffer against intermittent power supply, a common challenge in many developing regions, reducing crop loss and increasing reliability for both small and large-scale farmers.

Economic Scope:

The economic potential of the Craterpot system is substantial. By enabling localized food production, it reduces reliance on imported produce, strengthening local economies and creating new income streams. The ability to grow high-value crops (e.g., leafy greens, herbs) in controlled environments can lead to higher yields and faster growth cycles compared to traditional methods, translating to increased profitability. The system's modularity allows for scalable implementation, from small household units to larger commercial farms. Moreover, the unique feature of being able to transport plants still in their Craterpot, maintaining their vitality, opens up new market avenues for fresh produce, reducing post-harvest losses and extending shelf life for vendors and consumers.

Flexibility Across Growing Systems:

The Craterpot Hydroponic System is not limited to just one application. Its design is highly adaptable, making it suitable for a range of growing methods - including more conventional setups. For example, full-draining Craterpots are fully compatible with drip irrigation systems, which are widely used in greenhouse crop production (such as tomatoes). In these configurations, the Craterpot functions similarly to a standard draining pot, but with distinct advantages: root separation and ORI (Optimised Root Interface). Root separation creates defined zones for root development - something plants naturally favour. This encourages healthier root architecture, reduces the risk of root binding, and supports improved plant vitality. Meanwhile, the ORI structure promotes greater oxygen availability and more efficient nutrient uptake, both of which are essential for robust, high-performing crops.

Beauty in Simplicity:

The elegance of the Craterpot system lies in its straightforward design and operation. It avoids complex sensors, intricate plumbing, or sophisticated control systems often associated with advanced hydroponics. The overflow mechanism provides a simple, passive means of regulating nutrient levels and oxygenation. The use of readily available materials (Craterpot Plant Pots - which are comparable in price to conventional plant pots), and gravel contributes to its accessibility and ease of maintenance. This inherent simplicity makes the system easier to understand, implement, and manage - even for individuals with limited technical expertise - fostering broader adoption and sustainable agricultural practices.
